Product Description

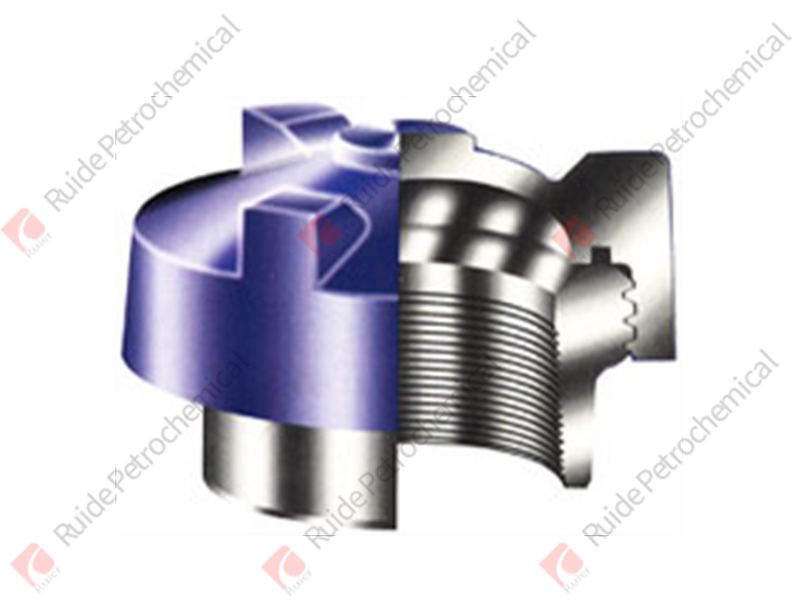

207 High pressure union
Type 206, which can be used for sealing joint with joint type of scho-40.
Recommended for use in air, water, oil, or steam applications to seal manifold connections and protect line connection threads.
207 type 2000psi nscwp, test pressure 3000psi, blue nut, grey part.
|
Nominal pipe size |
Total length |
Nut radius |
Material science |
Weight |
|||||
|
Nut |
Spare parts |
||||||||
|
In |
mm |
In |
mm |
In |
mm |
|
|
Ibs |
kgs |
|
3 |
76.2 |
33/4 |
95.25 |
27/8 |
73.03 |
SF |
SF |
9.8 |
4.45 |
|
4 |
101.6 |
45/16 |
109.54 |
319/32 |
91.28 |
SF |
SF |
16.25 |
7.37 |
|
6 |
152.4 |
513/16 |
147.64 |
431/32 |
126.2 |
SF |
SF |
38.0 |
17.24 |
