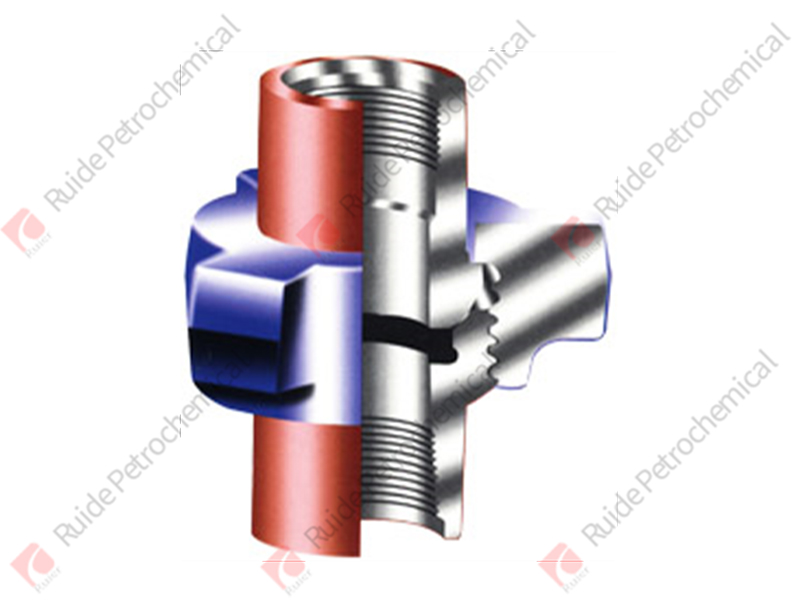

1502 high pressure Union
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
1502 high pressure Union
It is equipped with replaceable elastomeric nitrile rubber sealing ring and solid wall thickness design for high pressure system.
It is recommended for cementing, fracturing, acidizing, testing and plugging and killing pipelines. It can also be used for pressureless sealing connection, using butt welding Sch Xxh.
1502 15000psi nscwp, test pressure 22500psi, blue nut, red part.
|
Nominal pipe size |
Total length |
Taper hole |
Nut radius |
Material science |
weight |
||||||
|
Nut |
Spare parts |
||||||||||
|
In |
mm |
In |
mm |
In |
mm |
In |
mm |
|
|
Ibs |
kgs |
|
11/2 |
38.1 |
515/32 |
137.0 |
1/4 |
6.4 |
321/32 |
93.0 |
SF |
SF |
12.0 |
5.4 |
|
2 |
50.8 |
7 |
177.8 |
15/64 |
6.0 |
33/4 |
95.3 |
SF |
SF |
21.0 |
9.5 |
|
3 |
76.2 |
75/8 |
193.7 |
3/8 |
9.5 |
41/2 |
114.3 |
SF |
SF |
31.0 |
14.1 |
|
4 |
101.6 |
81/2 |
215.9 |
3/8 |
9.5 |
6 |
152.4 |
SF |
SF |
75.0 |
34.02 |
