Product Description

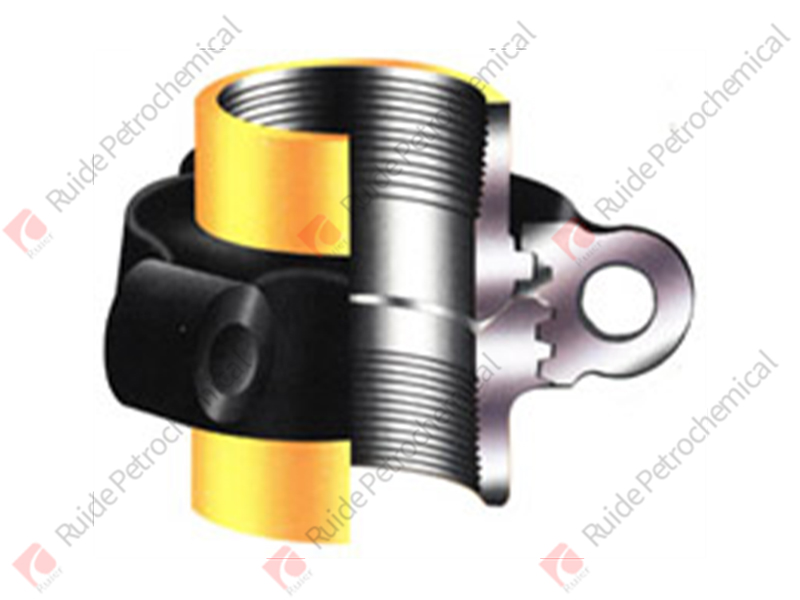

100 high pressure Union
It is recommended to use low pressure manifold and working pressure not exceeding 1000PSI.
Type 100 1000PSI nscwp, test pressure 1500psi, black nut, yellow part.
|
Nominal pipe size |
Total length |
Nut radius |
Material science |
Weight |
|||||
|
Nut |
Spare parts |
||||||||
|
In |
mm |
In |
mm |
In |
mm |
|
|
Ibs |
kgs |
|
2 |
50.8 |
35/8 |
92.1 |
215/16 |
74.6 |
SC/SF |
CDB/SF |
5.25 |
2.4 |
|
21/2 |
63.8 |
41/4 |
108.0 |
35/8 |
92.1 |
SF |
SF |
8.0 |
3.6 |
|
3 |
76.2 |
415/16 |
125.4 |
41/16 |
103.2 |
SF |
SF |
14.0 |
6.4 |
|
4 |
101.6 |
515/16 |
150.8 |
425/32 |
121.4 |
SF |
SF |
23.0 |
10.4 |
|
6 |
152.4 |
65/8 |
168.3 |
67/16 |
163.5 |
SF |
SF |
44.5 |
20.2 |
|
8 |
203.2 |
71/4 |
184.2 |
711/16 |
195.3 |
SF |
SF |
61.0 |
27.7 |
