Wedge gate valve
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description

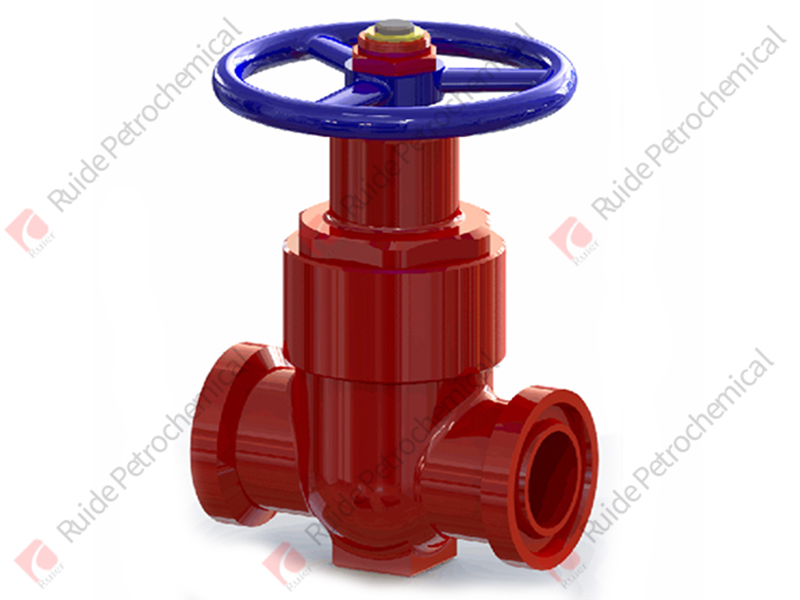

Wedge gate valve is a commonly used on/off valve, which is widely used in the situation with double flow direction requirements. It is usually used normally open or closed. Gate valves are not suitable for partial opening or throttling. Wedge gate valves conform to the latest API600 and ASME B16.34 standards, and can provide a wider range of product choices.
Basic parameters
Diameter range: 2 "~66" (DN50~DN1650)
Pressure rating: ASME CLASS 150~2500 (PN16~PN420)
Main materials: carbon steel, stainless steel, alloy steel and dual phase steel
Connection mode: RF, BW, RTJ
Operation mode: manual, pneumatic, electric and hydraulic
