Fixed choke valve
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description

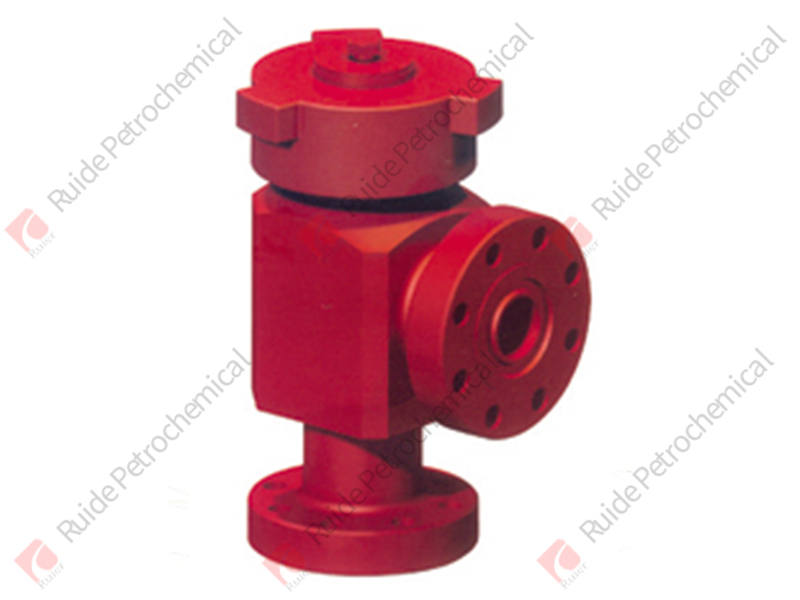

The fixed choke valve changes the throttling area of the liquid by changing the size of the choke nozzle, thus realizing the flow control of the fluid. The choke nozzle is made of ceramic or hard alloy, which has wear resistance and erosion resistance. Its replacement is quick and convenient with special tools. The valve body and bonnet are connected by union for easy disassembly.
Basic parameters
Nominal diameter: 2-1/16 "~7-1/16"
Working pressure: 2000psi~15000psi
Temperature: – 75 ° F~+250 ° F (– 60 ° C~+121 ° C)
Body material: AA, BB, CC, DD, EE, FF, HH
Specification level: PSL1-3G
Performance level: PR1-2
Nozzle specification: 1 "~3"
